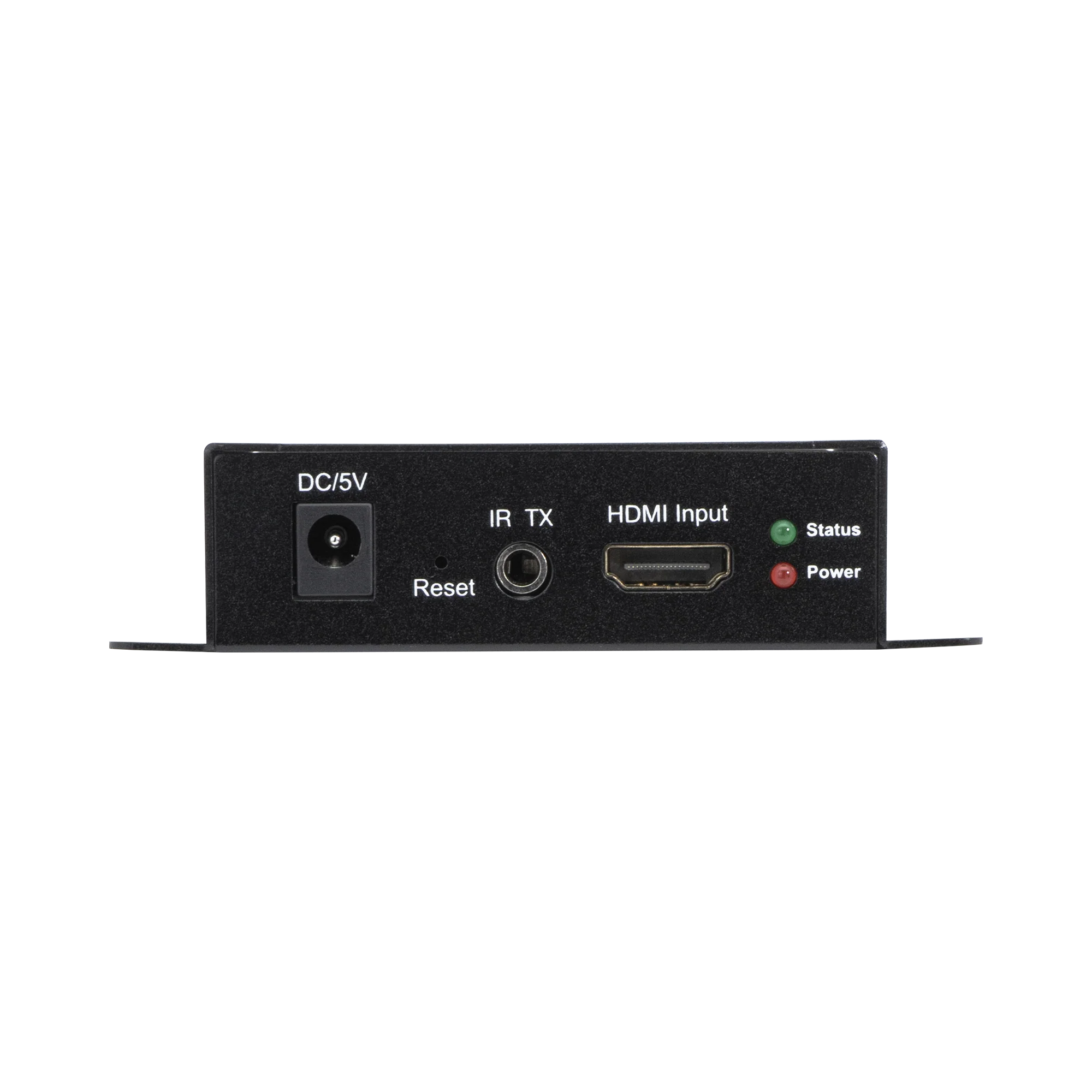

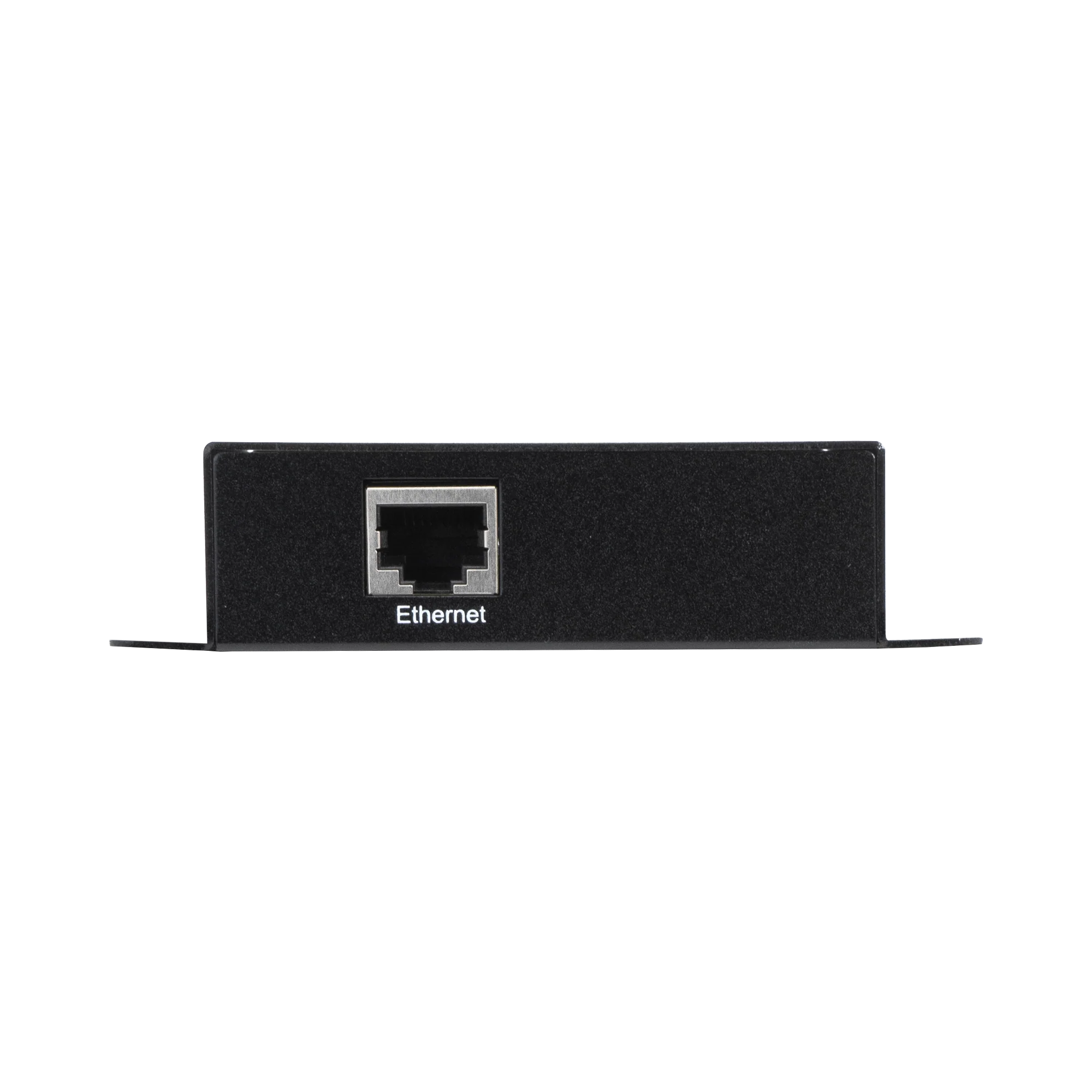

1080P 60Hz HDMI Extender Balun Over Ethernet For AV Over IP System - 400ft. (Transmitter)

*Please Note: This is a transmitter only that is designed to work with JTECH-EX-120M-UN-R (JTD-792) receiver.

J-Tech Digital ProAV Unlimited HDMI by Single Ethernet Cable up to 400ft is most advanced TCP/IP HDMI extender matrix on the market. It is a flexible and powerful alternative and combination of HDMI extender and HDMI matrix.

Three Working Modes Three modes includes point-to-point, point-to-many & many-to-many. For point-to-point mode, HDMI signal can be extended up to 120m (394ft) over a single Cat5E/6 cable.

Any-to-Any Broadcasting Extend your HDMI signal from any source to any receiver can never be too easy. By configuring J-Tech Digital customised gigabit network switch (JTECH-EX-120M-UN-S), you can stream your HDMI signal to one receiver or many receivers; also, receiver can pick the signal from any of the transmitters. The network switch can be cascaded to form a many-layer network to support a large HDMI extender system.

Standard TCP/IP Protocol HDMI signal is repacked into IP packets. Each receiver and transmitter has a unique IP address which you can manually set by logging into their web GUIs.

✅ HDMI 1.4b, HDCP 1.4, and DVI compliant for reliable compatibility.

✅ Supports video resolutions up to 1080P@60Hz.

✅ Audio compatibility with LPCM 2.5/1.7.1CH, Dolby 5.1CH, Dolby TrueHD, and DTS-HD formats.

✅ Quad multi-viewer with five selectable display modes.

✅ Audio output can be assigned from any input source.

✅ Control options include front-panel buttons, IR remote, and RS-232 commands.
