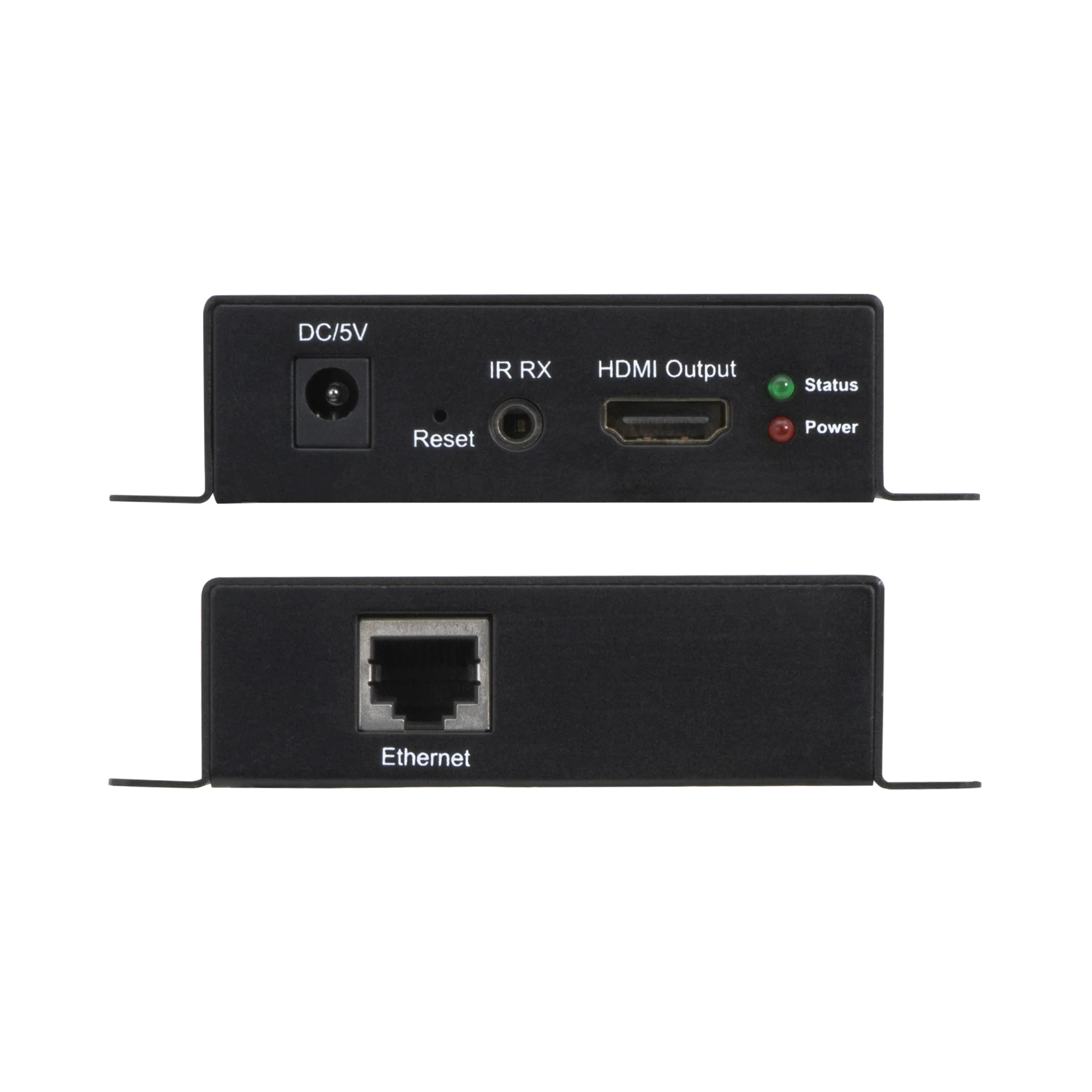

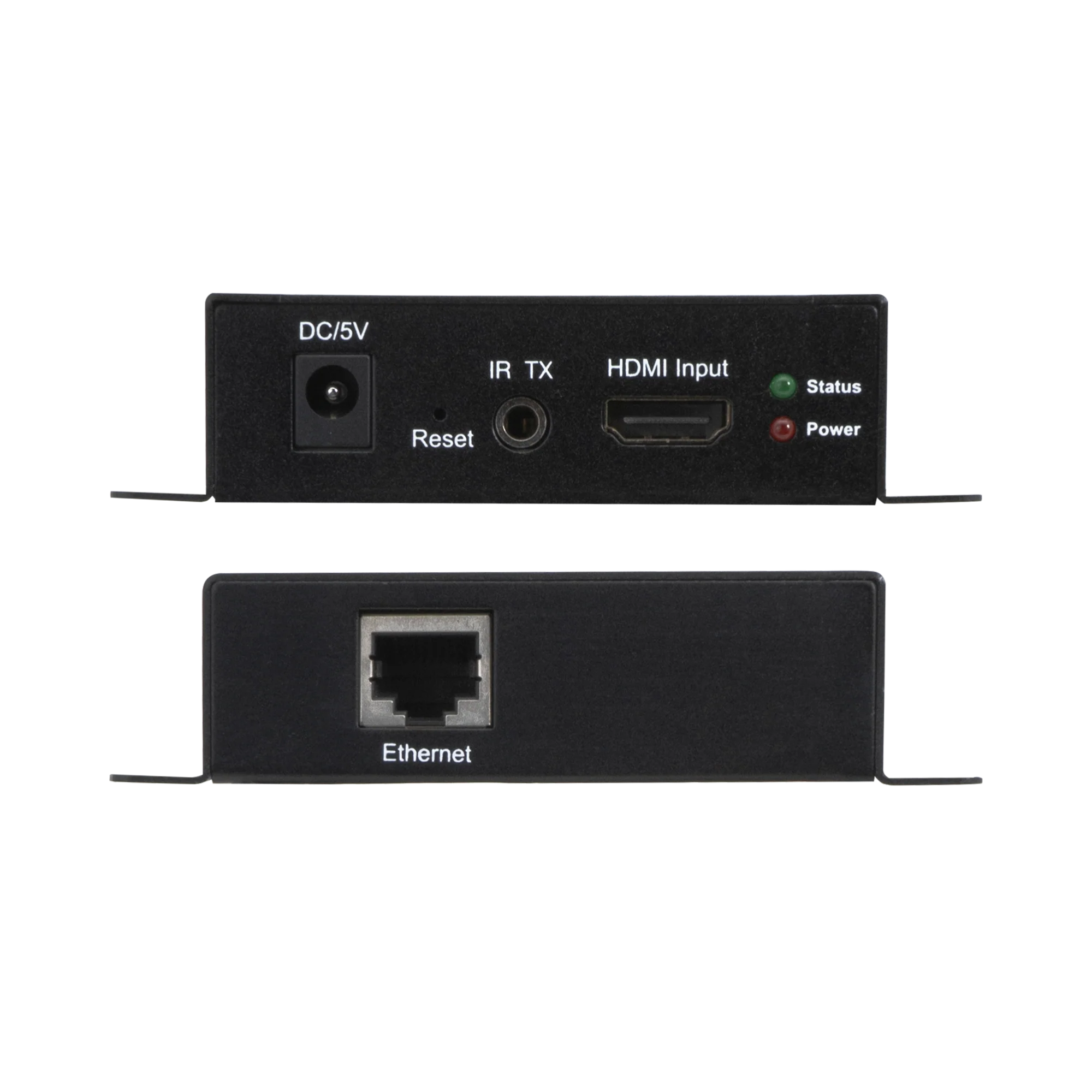

1080P 60Hz HDMI Extender Balun over Ethernet CAT5e/6/7 Cable (400ft.)

J-Tech Digital proudly introduces this HDMI Extender Over Single CAT5e/CAT6 Cable 1080p with IR - Up to 400 FT. This professional signal transmission system which combines the function of HDMI signal conversion, reception and reduction over a long range without loss in quality. One twisted pair up to 400 feet (CAT6) can be extended indefinitely.

Converts HDMI signals to standard TCP/IP and with the help of network devices, the transmission distance is virtually unlimited The JTD-EX-120M features HDMI network extender, IR synchronization technology,IR Frequency 38KHz-56KHz, Network splitter technology and Network extension technology.

✅ Input HDMI resolution: 480i@60Hz、480p@60Hz、576i@50Hz、576p@50Hz、720p@50/60Hz、1080i@50/60Hz、1080p@50/60Hz

✅ Output HDMI resolution: 480p@60Hz、576p@50Hz、720p@50/60Hz、1080p@50/60Hz

✅ Supports video color format: 24bit/Deep color 30bit/Deep color 36bit

✅ Support audio format: PCM

✅ Max transmission rate: 10.2Gbps

✅ Audio signal transmission format: L/R stereo audio

✅ TMDS signal: 0. 5-1. 5Vp-p (TMDS)

✅ Input cable length: ≤5m (AWG26 HDMI1. 3 standard cable)

✅ Output cable length: ≤5m (AWG26 HDMI1. 3 standard cable)

*Please Note: We recommend using this extender with a separate network switch/router or a switch that supports VLAN.
