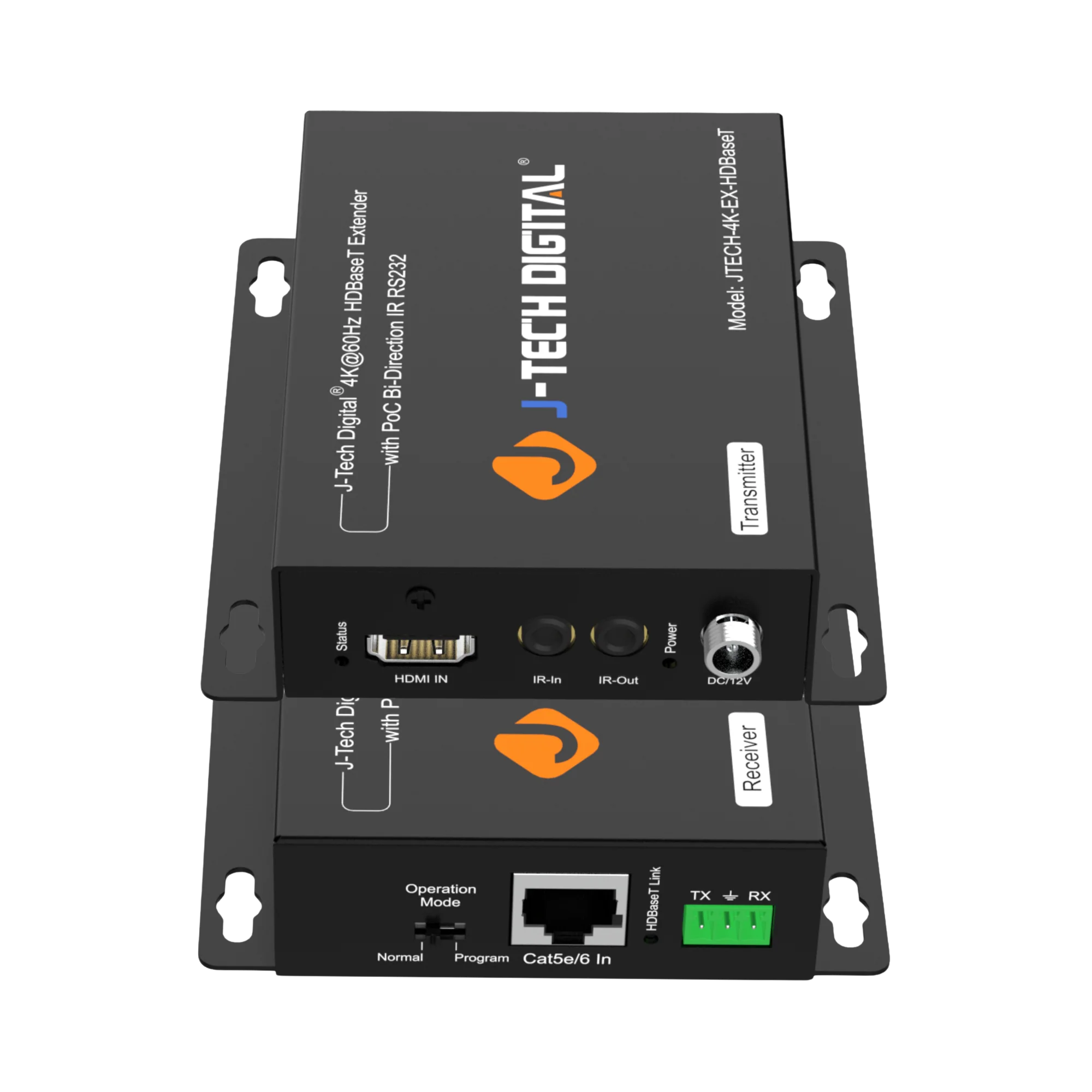

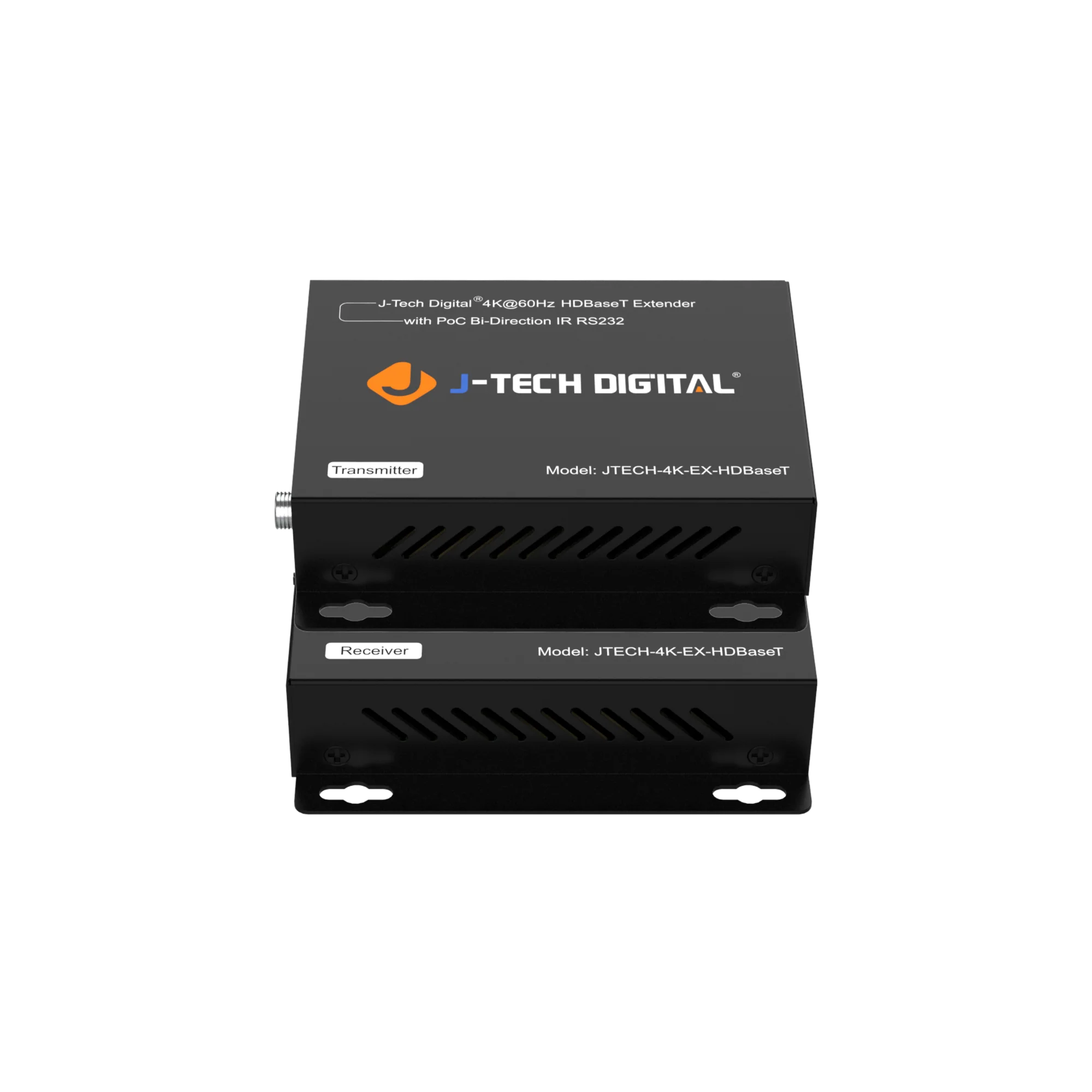

4K 60Hz (4:2:0) HDBaseT HDMI Extender Balun Over Ethernet with PoC

4K HDMI Extender over Cat5e/Cat6 – HDBaseT 230ft 1080P / 130ft 4K HDMI 2.0 Extender with IR & RS232

Extend your HDMI signal over long distances with this HDBaseT HDMI Extender, delivering uncompressed 4K@60Hz (4:2:0) video up to 130 ft (40m) and 1080P up to 230 ft (70m) using a single Cat5e/6 Ethernet cable. Enjoy flawless, high-definition video and audio transmission without signal loss or delay. Compatible with HDMI 2.0 and HDCP 2.2/1.4, this extender supports a full range of resolutions including 4K, 1080P, 720P, 576P, and 480P, along with premium audio formats like LPCM, DTS-HD, Dolby TrueHD, and Dolby Digital.

Includes bi-directional IR (20~60kHz) for remote control from either end and a Phoenix RS232 port for firmware updates or serial control integration.

For the best performance, use solid copper Cat6 Ethernet cable—we recommend the J-Tech Digital 150ft Cat6 cable (model JTD-943) for optimal results.

✅ Plug-and-play pair of full-function modules, no configuration required.

✅ Uses a single UTP/STP LAN cable (CAT-5E/6) to replace HDMI for long-distance transmission.

✅ UTP/STP cable termination follows IEEE-568B standard.

✅ Transmission distance up to 70 meters for 1080P and up to 40 meters for 4K video.

✅ POC function (receiver powered by transmitter).

✅ HDCP 2.2 and 1.4 compliant.

✅ Full HD support: 1080P@60Hz@48bit, 3D, and 4Kx2K video formats.

✅ LED indicators display power status.

✅ Built-in ESD protection.

✅ Includes mounting ears for easy installation.

✅ Transfers bidirectional IR control signals along with HDMI signal.

✅ Phoenix RS232 port for firmware updates or RS232 signal transmission.
