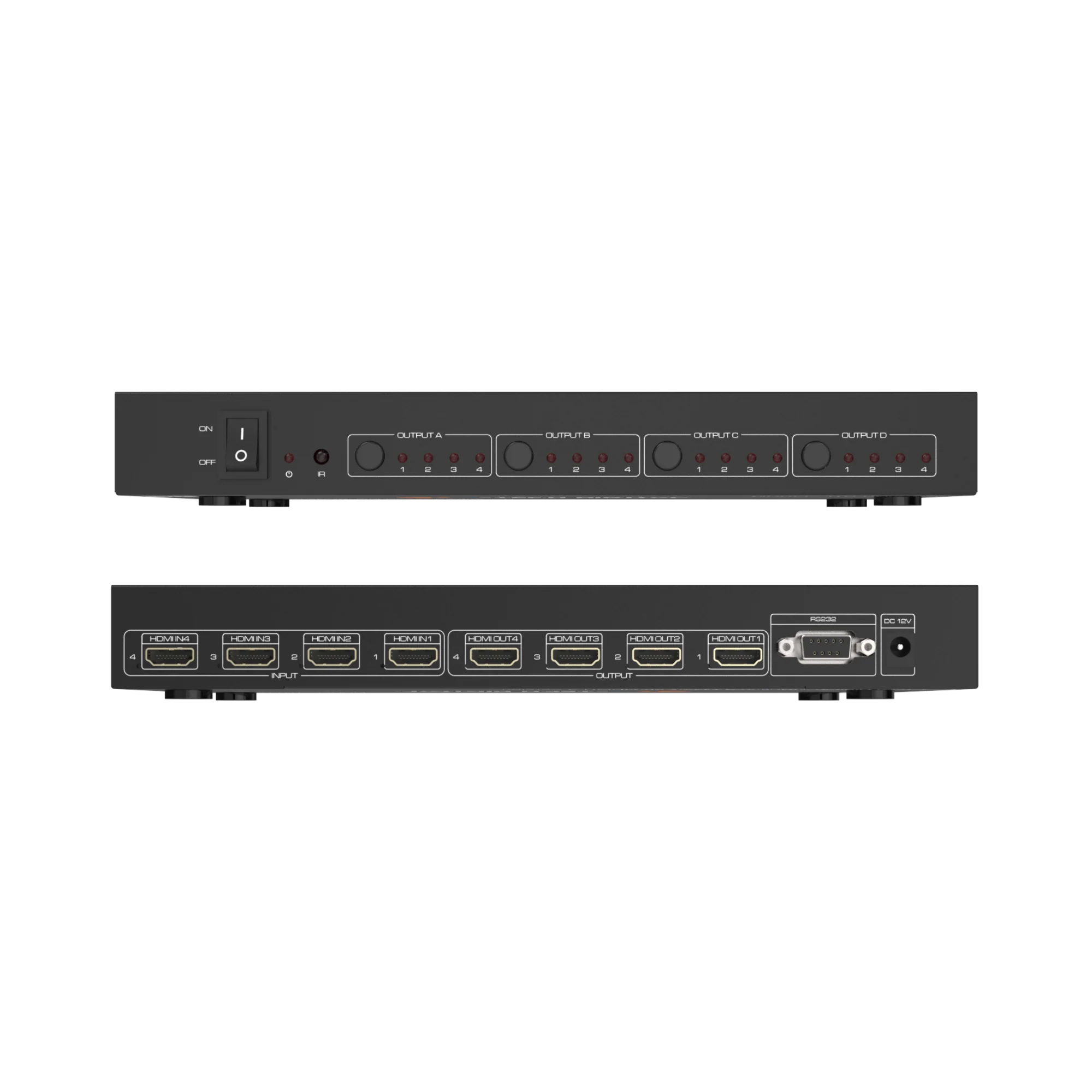

4K 30Hz 4x4 HDMI Matrix Switcher with RS232 and IR Control

4x4 HDMI Matrix Switch – 4K@30Hz HDMI Splitter & Switch with RS232 and IR Control

Create a fully customizable video setup with this 4x4 HDMI Matrix Switch, featuring 4 HDMI inputs and 4 HDMI outputs. Route any source to any display—or all displays simultaneously—for flexible video distribution across multiple screens.

Enjoy crystal-clear visuals with support for up to 4K@30Hz resolution, fully HDCP 1.4 compliant and backward compatible with 1080P and 720P signals.

Supports premium HD digital audio formats, including LPCM, DSD, DST, and DTS, for rich, high-quality sound.

Easily control the matrix via RS232 connection or the included IR remote control. Built-in signal equalization and amplification ensure optimal transmission with no loss in video or audio quality.

✅ Display resolutions up to 4K×2K@30Hz, 1080P@120Hz, and 1080P 3D@60Hz.

✅ HDMI 1.4a video format compatibility.

✅ 3D video support with frame packing for all 3D formats up to 297MHz TMDS clock.

✅ Deep color support up to 48-bit per pixel.

✅ HDCP 1.4 (input) and HDCP v1.4 protocol compliant (output).

✅ Audio reception per HDMI 1.4 spec, supporting LPCM up to 192kHz, compressed audio (IEC 61937), DSD, DST, DTS, and HBR.

✅ Full colorimetry support including sYCC601, Adobe RGB, Adobe YCC601, and xvYCC extended gamut color.

✅ TMDS clock frequency operation up to 300MHz.
